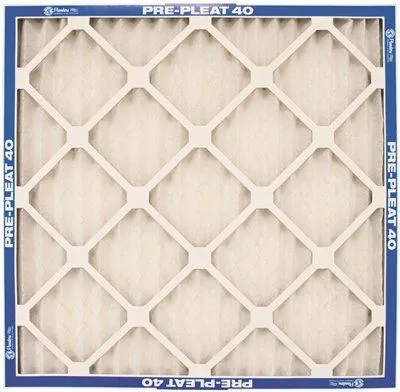

Name: Flanders Merv 7 Pre-Pleat 40 Lpd Economy Air Filter 16X16X1 Inch 12 Per Case
SKU: 661984

Item Number :2489733

UPC Code : 31949277932

UNSPSC Code : 40161505

Brand :Flanders

MORE DETAILS

Flanders Economy Pre Pleat 40 extended surface pleated filters are designed to operate in most every type of installation. These filters have an average atmospheric dust spot efficiency Range

The Flanders v-pleat design insures that the greatest media area is exposed to the air flow to promote uniform dust loading. Competitive filters cannot maintain this rigid shape and tend to flatten out using only a portion of the media.

Filter frames are constructed from two pieces of die cut moisture-resistant carrier board. Components "telescope" into one another and provide double-wall construction and a precision fit. The frame includes diagonal and horizontal support members bonded to the media on the air entering and leaving sides for unsurpassed frame strength. Locking corners and positive media-to-frame seal reduces the possibility of air bypass.

The filter media is a high-loft reinforced non-woven cotton/synthetic blend. It is continuously laminated to an expanded metal grid on the air leaving side to provide pleat stability throughout the life of the filters and prevent media flutter while in operation.

The Flanders unique v-pleat wedge pleat allows for total media usage and provides maximum air flow and dust holding capacity

Economy Pre Pleat 40 filters are UL 900 Class 2 listed

Flanders Merv 7 Pre-Pleat 40 Lpd Economy Air Filter 16X16X1 Inch 12 Per Case
